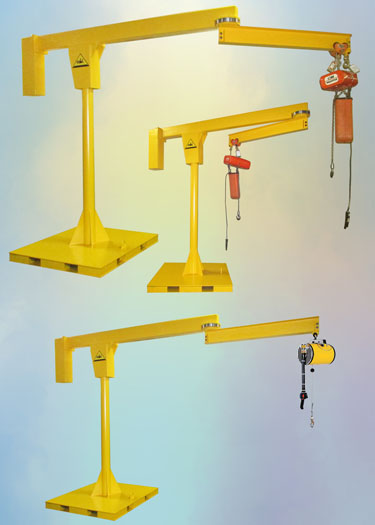

PTC Industrial is your source for portable jib cranes with an articulating Forearm, 360° rotation and telescopic masts.
The main benefit is portability which enables the portable jib crane to be used anywhere, anytime for indoor and outdoor use without permanent installation. The unit provides on the spot handling and it can operate in harmony with big and bulky overhead cranes.
The most exciting new feature is the 6 ft long articulating forearm feature that rotates 360° providing 100% coverage within the work area. The 10 ft main beam also rotates 360° for a total work area of 16 ft radius.
It can be used for many industrial applications such as: machine loading, lifting, transferring, stacking, packing, holding parts for inspection, assembly, maintenance, etc.
Capacities available are 500, 1000 and 2000 lbs. The beam height is 8, 10, 12, 16 and 20 feet. The power options are 110 volts single phase, 240-480 volts 3 phase as well as air powered hoist and mast lift for hazardous environments.
The mast rotation and forearm rotation are featured with precision bearings to enable easy and smooth operation. The Portable Jib Crane is an ergonomically designed tool to help in multiple tasks to increase efficiency, save time, make the job easier, and improve the morale of the work force the smart way – by having the worker use more brain than muscle.
Contact us today to learn more.
